LS(V)- 6(4)
Category: Neft Mədən Avadanlıqları
Quyu tədqiqi qurğuları

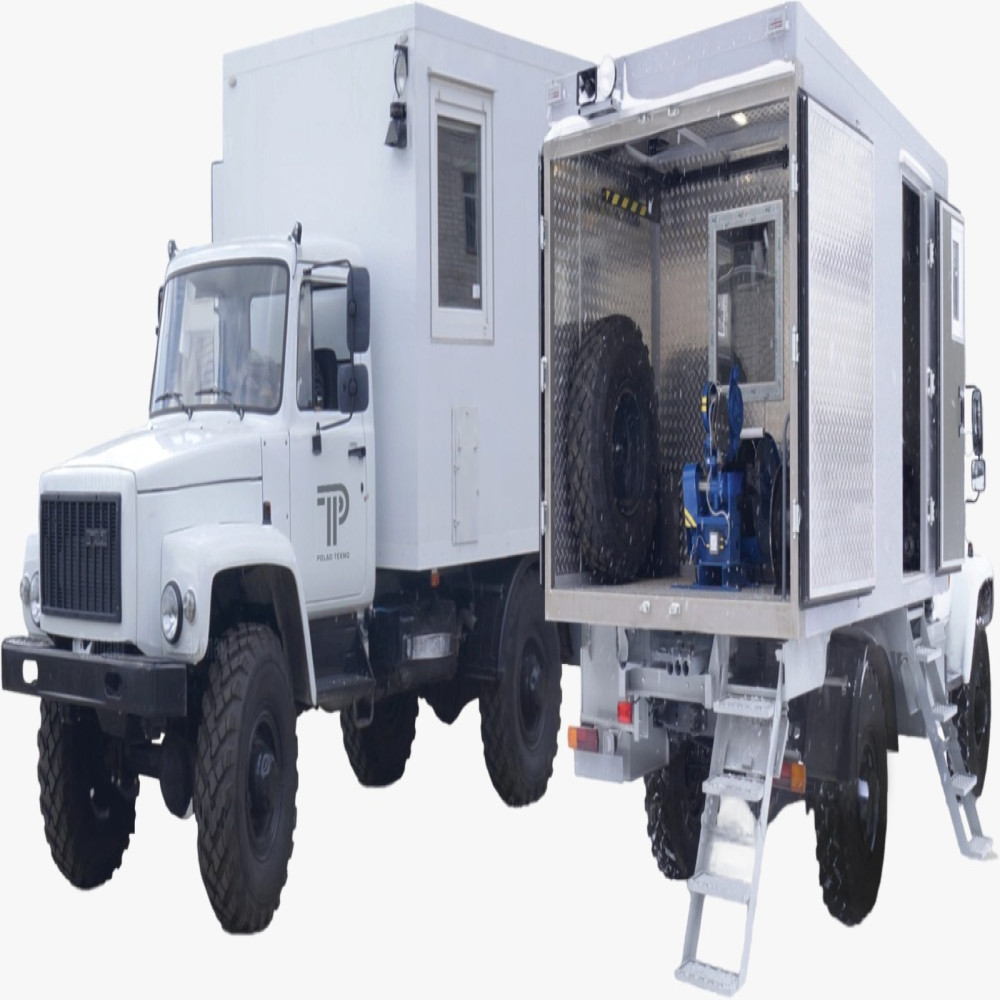

The device is installed on the chassis of various vehicles, it includes a winch with a control and control post, winch transmission, as well as a replacement control mechanism for the clutch and the rotation frequency of the car engine. Vertical cages for transporting research devices and instruments, a locksmith's bench with a vise, a wardrobe for working clothes and a heater are installed on the chassis of the car. In addition to the operator's seat, a small desk for registration is attached to the wall of the bathroom. On the wall of the bath (on the left on the way), a passage with a heating device is provided for the exit of the working wire.
İntiqalın gücü, kVt |
16 |
Xidmət dərinliyi, m |
6300 |
Nominal dartı qüvvəsi,kN |
6.3 |
Qaldırma sürəti, m/s |
0.4 – 5.3 |
Barabanın tutumu, m |
|
1.8 mm |
8000 |
2.0 mm |
7200 |
Əndazə ölçüləri, mm |
|
LS-6 |
5805x2500x3040 |
LSV-6 |
5390x2580x2200 |
Ümumi çəki |
|
LS-6 |
4884 |
LSV-6 |
4834V |
